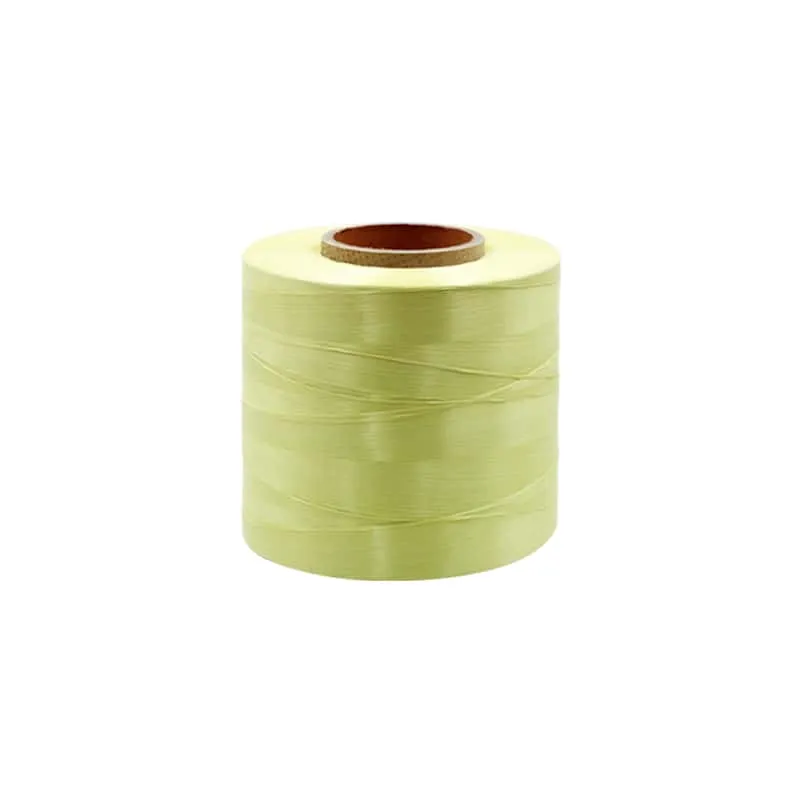

Water blocking aramid yarn

Application

Water blocking aramid yarn is a high modulus aramid fiber. It’s suitable for ADSS, Non-metallic and indoor optical fiber cable. It’s a kind of excellent raw material to strengthen the optical fiber cable

Features

low density, high tensile modulus, high tensile strength.
Reducing cable diameter and weight.
stable in higher temperature, low shrinkage, and high glass transition temperature.
Non-conductive, better corrosion resistance.

INQUIRY NOW

Technical Data

PropertyUnitYS1610DYS1580DYS1670DYS1000DYS1500DYS1100DYS3160D(3000D)YS840D(1000D)
Mass per lengthm/kg5500±10%5000±10%5500±10%7000±10%5800±10%7000±10%2500±10%9000±10%
Absorption speedml/g/1min151515515101010
Absorption capacityMl/g/5min1520151020/15151515
Moisturecontent%≤6≤6≤9≤4≤2.2/3≤6≤6≤6

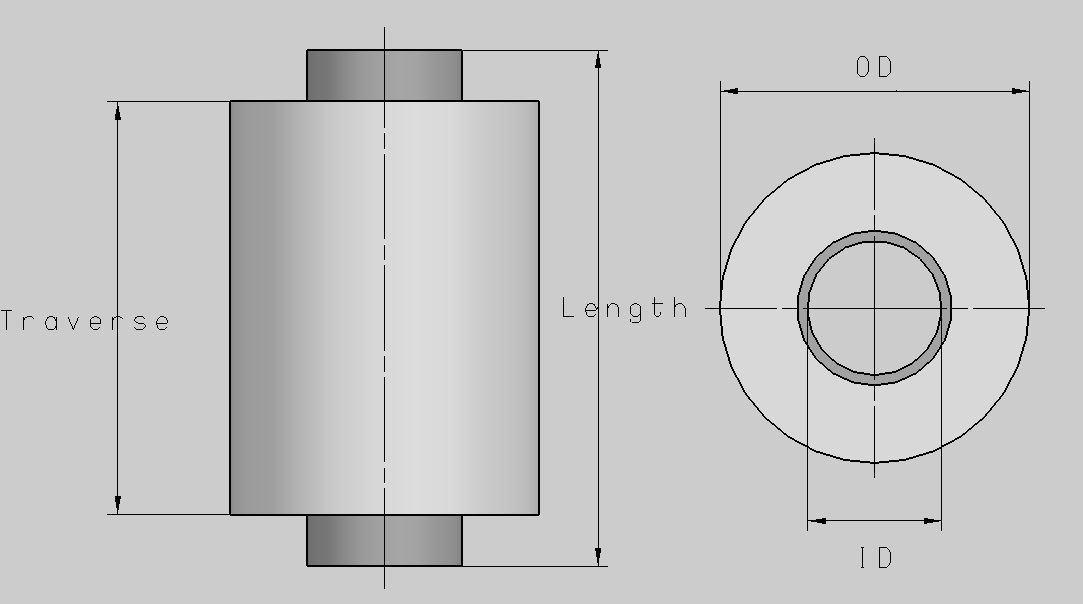

Spool Size:

ID:54mm,60mm,76mm,94mm,107.5mm,127mm

OD:max.270mm

Tube Length:170mm,175mm,220mm,270mm

Traverse:150mm,200mm,250mm


Spool Specification:

Spool Specification
